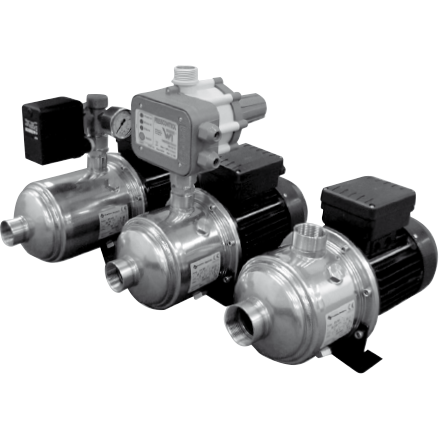

Franklin Pumps MH Series

Applications

  • Small domestic and industrial systems / Domestic water supply
  • Water distribution / Pressure boosting
  • Irrigation / Gardening / Sprinklers / Rainwater collection
  • Industrial plants / Wash down unit
  • Other various installations

Features

  • Compact close-coupled design, robust and rust resistant / Superior efficiency and performances
  • Heavy duty oversize motor shaft
  • Body, impellers and diffuser made of 300 series SS for maximum durability
  • Easy maintenance
  • Robust ball bearing fitted into the motor bracket for greater longevity
  • Single-phase models come with AU/NZ plug

Specifications

  • Capacities up to 14 m³/h at 50 Hz. Available in 3 flow rates: 3, 5 and 9 m3/h
  • Heads up to 10 bar, at 50 Hz.
  • Suction inlet 1.25″ BSP MH 3/5 – 1.5″ BSP MH 9
  • Discharge outlet 1″ BSP MH 3/5 – 1.25″ BSP MH 9
  • Maximum working pressure 10 bar
  • Maximum ambient temperature 40 °C
  • Liquid temperature range -15 °C to 110 °C
  • Asynchronous, TEFC, Class F insulation, IP55 protection motor
  • Capacitor inside terminal box
  • Single-phase motors with built-in thermal relay
Be the first write a review
0.00

Share this:

Reviews

There are no reviews yet.

Be the first to review “Franklin Pumps MH Series”

Your email address will not be published. Required fields are marked *

Franklin Pumps MH Series

The new Franklin Pumps MH Series, multi-stage booster pump is designed to meet your pressure boosting needs. The stainless steel construction offers high performance in a wide variety of applications.
