Specifications

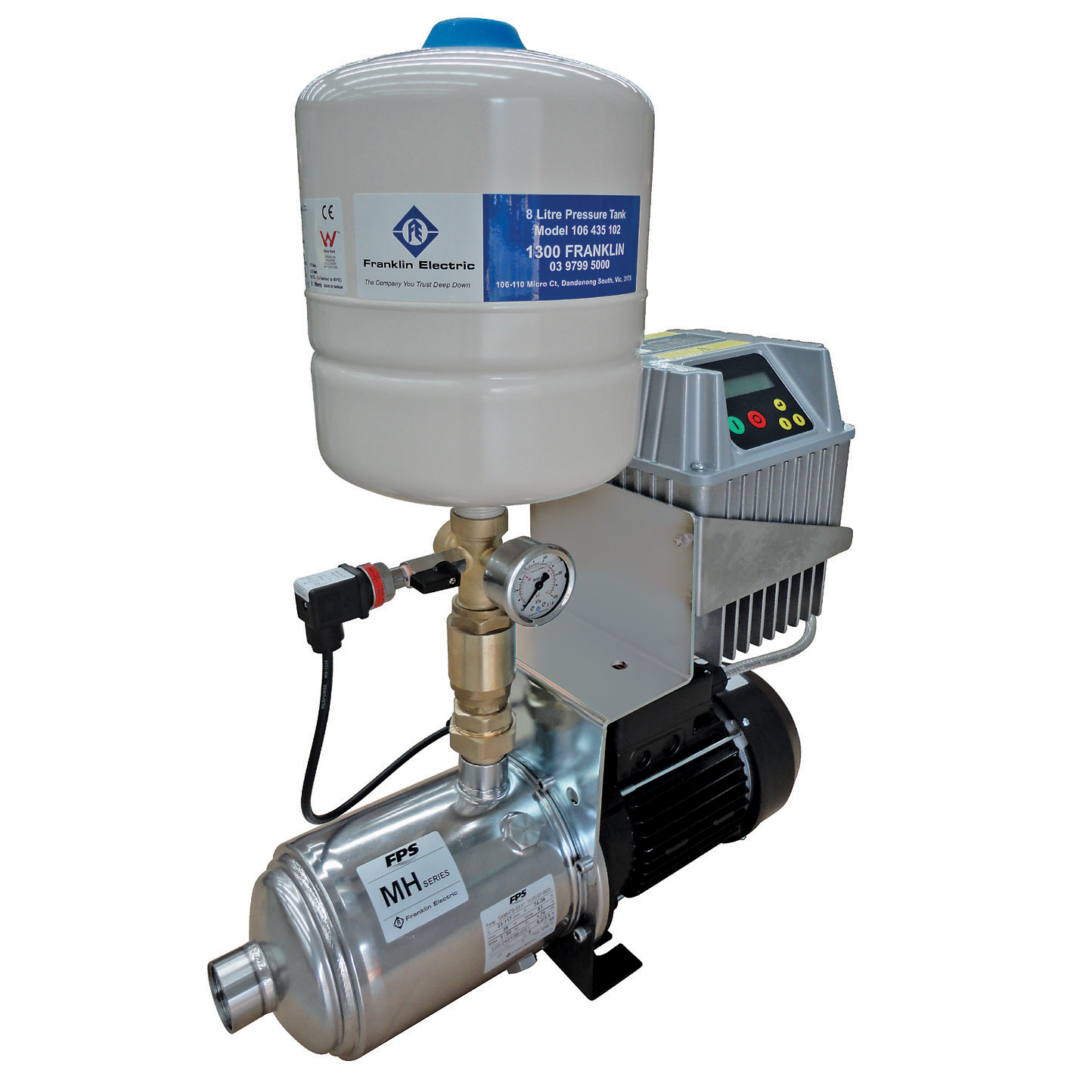

Compact close-coupled design, robust and rust resistant
Asynchronous, TEFC, Class F insulation, IP55 protection motor 1 phase VSD with built in thermal protection coupled to a 3 phase motor
300 series stainless steel on all hydraulic components
DrivE-Tech VFD by Franklin Electric
10 amp 3 pin plug with 2 metre lead
Capacities up to 8 m3/h (MHQP5) and 15 m3/h (MHQP9) at 50 Hz
Capable of heads up to 7.5 bar at 50 Hz
Heavy duty oversized motor shaft
Suction Inlet – 1.25″ BSP MHQP5, 1.5″BSP MHQP9
Discharge Outlet – 1″ BSP MHQP5, 1.25″BSP MHQP9
Maximum working pressure 10 bar
Maximum ambient temperature 40 °C
Liquid temperature range from -15 to 110 °C
Easy maintenance
Made in Italy
Approved by Brisbane City Council
Complies with AS/NZS4020 Drinking Water
